Acon Digital Mastering Suite
Acon Digital Mastering Suite: Dynamics, Multiband Dynamics, Limit, Equalize, Dither. Contains five audio mastering plugins.
Electronic Delivery
PLEASE NOTE: This product is delivered via secure, electronic delivery. You will receive the full product license (with instructions) direct to your email. Enjoy a safe and fast way to get the latest version and full support direct from the manufacturer.
Description

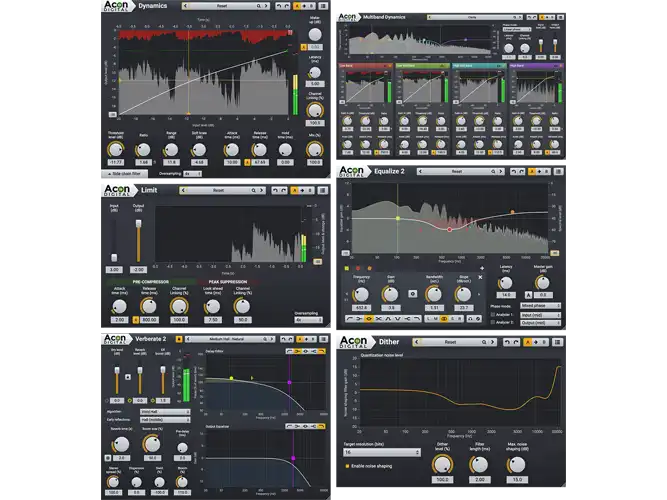

Acon Digital Mastering Suite consists of five plug-ins for audio mastering that were designed for ultimate signal transparency. Acon Digital Mastering Suite is available as VST, VST3 or AAX for both Windows and Mac or as AU plug-ins for Mac. There are 32 and 64 bit versions for Windows. The Mac version is 64 bit and runs natively on both ARM (such as Apple M1) and Intel processors.
Dynamics
Dynamics is a combined compressor, expander or gate. The look-ahead can be set anywhere from 0 to 30 milliseconds and the intelligent algorithm ensures a band-limited gain signal which reduces potential distortion to a minimum even with minimal attack and release times. You can use up to 4 times oversampling to further reduce distortion. The side chain signal can be either internal or external and there’s a full blown side chain equalizer integrated with low cut, low shelf, peak, high shelf and high cut filters.
Despite the complexity of algorithm, the user interface is intuitive and provides graphical visualizations of all aspects of the processing. With the introduction of Mastering Suite 1.1, Dynamics now offers a new auto-release mode that dynamically changes the release time depending on the audio material. A new Range control makes it possible to limit the maximum gain reduction during dynamic processing. Parallel compression is easily achieved using the new Mix knob that controls the mix of processed and unprocessed audio.
Multiband Dynamics
Multiband Dynamics is the multiband extension of Dynamics which allows dynamic processing in up to four separate bands. You can freely set the cross-over frequencies and even the filter slopes can be set freely in the range 6 and 48 dB per octave. Multiband Dynamics operates in linear phase mode to avoid phase issues between the processed bands.
Version 1.1 introduces mixed phase filtering which reduces pre-ringing — a well-known problem with linear phase filtering. Pre-ringing smears sharp transients and thus degrades the audio quality. The new Channel Linking parameter controls how independently channels are processed.
Limit
Limit is a transparent limiter with intelligent look-ahead in the range 0 to 30 milliseconds that reduces distortion to a minimum. The limiting is performed in a two step process with a pre-compressor follower by the actual peak limiting algorithm. You can use up to 4 times oversampling for true peak limiting and to further reduce distortion. With version 1.1, the pre-compressor has a new auto-release mode that adapts the release time to the audio material.
Equalize
Equalize is a parametric equalizer. Unlike other equalizers, you can freely adjust not only center frequency, gain and bandwidths, but also the filter slope for each band. The filter slope can be set anywhere from 3 dB to ultra-sharp 120 dB per octave.
You can operate Equalize as a zero latency plug-in when using the minimum phase mode, choose to preserve the phase relationships in the linear phase mode or use the unique mixed phase mode. The mixed phase mode allows you to set the latency freely in the range 5 to 120 milliseconds while preserving the phase relationships as far as possible. That gives a unique control over potential pre-ringing artifacts which is a common problem with linear phase filtering.
Dither
Dither is a dithering plug-in with flexible perceptual noise shaping. You can adjust the maximum gain and the filter length of the frequency response of the noise shaping filter is visualized graphically.
Features
- Available as VST, VST3 or AAX plug-ins on PC (Windows)
- Available as VST, VST3, AAX or AU plug-ins on Apple Macintosh (OS X)
- Native 32 bit or 64 bit versions of all plug-ins are available
- Supports sampling rates up to 96 kHz
- Supports multi-channel audio up to 7.1.6 immersive formats
- Intelligent look-ahead algorithm that reduces distortion to a minimum
- Latency and look-ahead can be set anywhere between 0 and 30 milliseconds
- Powerful side chain filtering with full EQ section — low cut, low shelf, bell, high shelf and high cut filters
- Oversampling up to 4X
- Threshold and ratio can be adjusted directly in the level history curve or using knobs
- Acts as a compressor for ratios over 1:1 and as an expander or gate for ratios below 1:1
- Adjustable soft knee specified in dB
- Adjustable attack, hold and release times specified in milliseconds
- Optional auto-release mode for audio dependent release times
Key Features
- You can set channel linking between 0 (no link) and 100% (all channel share the same gain control signal)
- Adjustable make-up gain specified in dB with optional automatic mode
- Dynamic processing in up to four separate frequency bands
- Spectral analyzer with frequency band indicators, freely adjustable cross over frequencies and freely adjustable filter slopes
- Intelligent look-ahead algorithm that reduces distortion to a minimum
- You can adjust threshold and ratio directly in the level history curve or using knobs
- Acts as a compressor for ratios over 1:1 and as an expander or gate for ratios below 1:1
- Optional auto-release mode for audio dependent release times
- Operates with either linear or mixed phase filtering
- Adjustable soft knee specified in dB
- Adjustable attack and release times specified in milliseconds
- Intelligent look-ahead algorithm that reduces distortion to a minimum
- Pre-compressor stage with adjustable attack and release times specified in milliseconds
- You can set channel linking separately for pre-compressor and peak suppression with values between 0 (no link) and 100% (all channel share the same gain control signal)
Eight Different Band Filter Types
- Oversampling up to 4X for true peak limiting
- Optional auto-release mode for audio dependent release times
- Graphical history curve showing level and gain reduction for the past 5 seconds
- Up to twelve equalizer bands
- Eight different band filter types (low cut, low shelf, peak, tilt, bandpass, notch, high shelf and high cut)
- Band frequency, gain, bandwidth, resonance and filter slope is freely adjustable for each band
- Three different filter modes, minimum phase, linear phase or the novel mixed phase
- Adjustable latency and pre-ringing time in mixed phase mode
- Zero latency in minimum phase mode
- You can set channel mode independently (mid, side, left, right or full processing) for each band
- Multiple selection of bands
Graphical Visualization
- Resizable graphical user interface
- Solo and bypass modes
- Optional automatic make-up gain
- Optional gain to bandwidth linking
- Two spectrum analyzers that can analyze the input or output signal from the mid, side, left or right channel
- Graphical visualization of the equalizer frequency response
- Preset manager and a large number of factory presets
- Save, load and categorize user presets
- Triangular Probability Density Function (TPDF) dithering
- Physcho-acoustic noise shaping filter with adjustable filter length and maximum filter gain
- Graphical representation of the noise shaping filter’s frequency response
- Supported target bit depths: 8, 12, 16, 20 and 24 bits
Tech Specs
MAC
OS X OS X 10.9 or later
Memory: 1 GB
Disk: 1 GB
CPU: Runs natively on ARM64 and Intel
Plugins: VST-2, VST-3, AU, AAX
WINDOWS
Windows Windows 7 / 8.x / 10 / 11
Memory: 1 GB
Disk: 1 GB
CPU: Intel Core i3 or AMD multi-core processor (Intel Core i5 or faster recommended)
Plugins: VST-2, VST-3, AAX
